"We also are an authorized dealer of Impulse winding tester, ECG kokusai Japan. We have long experiences on ECG impulse winding tester. We can support you with strongly technical background"
The impluse coil-winding tests the electrical characteristics of coil winding without damaging the sample.

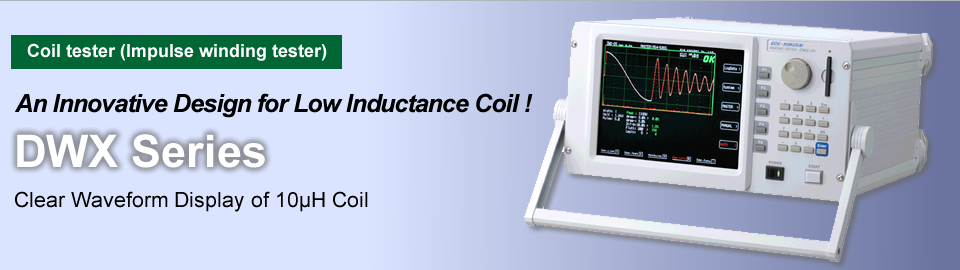

Solution for low inductance coil test
4 inch color TFT display
Sensitive and precise test
Partial discharge (PD) amount can calculate by Laplacian method
Support CF memory to stored master file
Ultra-low-inductance coil, high-speed test specification! Test in 10mS the coil of 1μH!
1uH ultra low inductance testing
Up to 1000V voltage applied
4 terminal testing circuits to perform precision
200MHz high speed sampling time
As the use of inverter coil will increase in the future, such as house hold appliances, automotive coil, industrial commodity.
PD Break-down voltage (PDIV), electrical discharge disappearance voltage (PDEV), electrical discharge level (PD peak)
PD detected by an electromagnetic wave directly
Sensitive and precise detected by micro wave sensor module
４functional test can be carried out with one unit included: AC withstanding, Insulation resistance, DC resistance and Impulse test.
10-ch for Motor and multi coils test
Up to 1000V voltage applied
4 terminal testing circuits to perform precision
Support LAN (option) interface
IT-M3400 bidirectional DC power supply integrates the features of a bidirectional power supply and a regenerative load.
Bidirectional
High efficient power regeneration
Battery simulation/charge and discharge test
Independent control of multiple channels
IT-M3600 regenerative power system integrates two instruments in one, which is a bidirectional power supply and a regenerative electronic load.
High efficient power regeneration
One button switch between source and load
Bidirectional energy flow between DUT and grid
PV inverter I-V curve simulation
Battery simulation and test
IT8000 series is a family of high power regenerative electronic loads with compact size95% Max. Energy-regenerative efficiency
On–grid electricity accumulation function, anti–islanding protection
Battery test function
Support master–slave paralleling, current equalized distribution
IT8912E high accuracy LED specific testing electronic loads can simulate the real output of LED lights with different characteristics for LED driver testing.
Unique CR-LED mode for LED driver testing
Up to 20KHz CC dynamic mode
I-pp/I-max measurement function can test current ripple and start up surge current
Simulate LED lights with different characteristics
IT5100 series is a series of battery internal resistance testers with high precision, high resolution and high speed.
Simultaneous resistance and voltage measurements
Up to 125 measurements /s
Statistics calculation and data storage function
Comparator function
Zero adjustment function
IT6400 series can be used as a bipolar power source or a bipolar electronic load which has the battery simulating function.
Bipolar dual-range output
Oscilloscope waveform display (DSO)
Battery Simulating Function
Current display resolution up to 1nA
Ultrafast transient response time < 20μs
AC power source that can be remote controlled and integrated with other systems for easier operation.
7-inch touch screen display
Phase angle adjustment function
compact, smaller, high power density and easy maintain
Comprehensive protections which include output undervoltage
The output voltage range of 5-300V. Output frequency is switchable: 47-63Hz continuously adjustable
Single-phase output up to 120kVA, Three-phase output up to 2000kVA
High efficiency of up to 92% at full load
Comprehensive protections: OCP, OVP, UVP, OTP
CE & RoHS certification
SJW-WB serial Industrial Micro-chip(CPU), Non-contact(contactless) Compensated Voltage Stabilizer which is a new generation quick stabilizing voltage equipment.
CPU intelligent SCR control, stable and reliable
Regulator speed to 0.03S
Efficiency is more than 99%
Anti-interference, cleaning ability
Automatically bypass protection function.
JSW series precision purifying AC regulated power source. It is an ideal regulated power source for all kinds of test and measurement device and electronic device.
Output precision ±1%
Regulator speed to 0.1S
Efficiency is more than 90%
Provide a quiet and reliable working environment.
Conform to CE, RoHs
Matric relays scanner 8×8 channels.
The relays are Ormron G6K-2F-Y-DC3 , 100mOhm, 1 A@30VDc
Controlled by I2C standard, Power supply 3.3 Volts
ES901-400 ECG DWX scanner 4 + 1 channels
High voltage scanner with 4 isolated Channels and additional return channel for ECG DWX series.
The unit is designed specially for ECG DWX Impuslse Winding Tester compatible.
The colorful GUI touch screen provides easily access and control the unit, press once! test 4 coils.
This scanner is very useful for testing motor which has up to 4 coils.
ES901-400 has ES-handler port for PLC control and tower lamp for production line.
