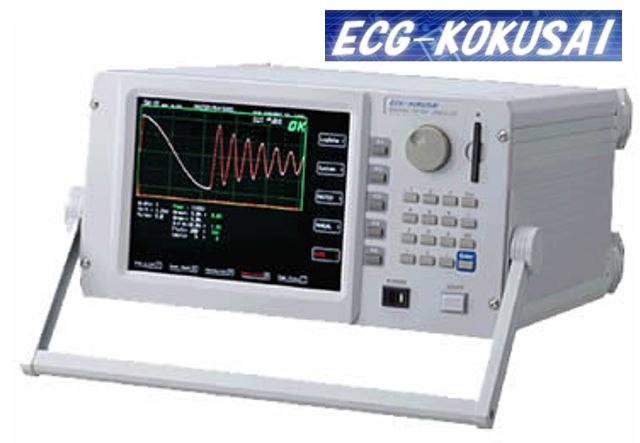

Impulse Winding Tester

DWX-series

The impluse coil-winding tests the electrical characteristics of coil winding without damaging the sample.

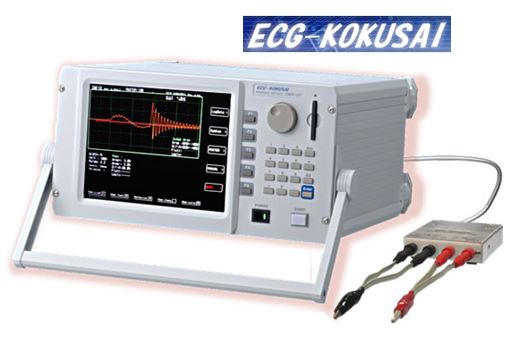

Inductor Testing Machine

DWX-10LI, DWX-01LI

Ultra-low-inductance coil, high-speed test specification! Test in 10mS the coil of 1μH!

Partial Discharge Tester

DWX-05PD

As the use of inverter coil will increase in the future, such as house hold appliances,　automotive coil, industrial commodity.

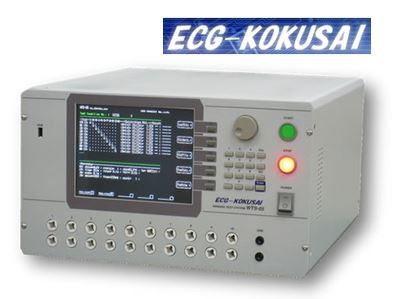

Automatic Motor Testing Machine

WTS-05

４functional test can be carried out with one unit included: AC withstanding, Insulation resistance, DC resistance and Impulse test.

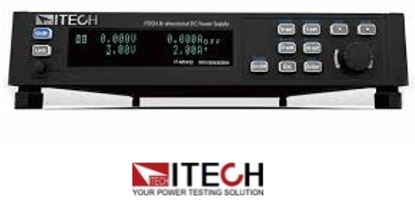

Bi-Directional DC Power Supply

IT-M3400 series

IT-M3400 bidirectional DC power supply integrates the features of a bidirectional power supply and a regenerative load.

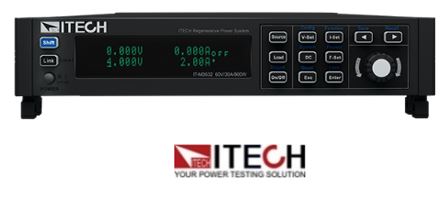

Regenerative Power System

IT-M3600R series

IT-M3600 regenerative power system integrates two instruments in one, which is a bidirectional power supply and a regenerative electronic load.

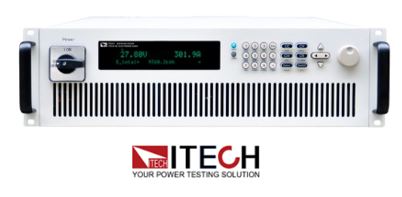

Regenerative DC Electronic Load

IT8000 series

IT8000 series is a family of high power regenerative electronic loads with compact size95% Max. Energy-regenerative efficiency.

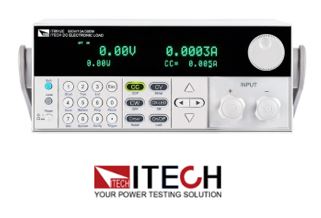

LED Driver Test DC Electronic Load

IT8912E

IT8912E high accuracy LED specific testing electronic loads can simulate the real output of LED lights with different characteristics for LED driver testing.

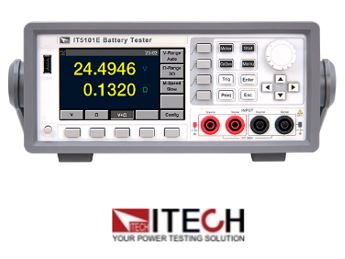

Battery Tester

IT5100 series

IT5100 series is a series of battery internal resistance testers with high precision, high resolution and high speed.

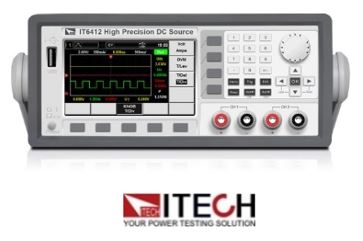

Battery Simulator

IT6400 series

IT6400 series can be used as a bipolar power source or a bipolar electronic load which has the battery simulating function.

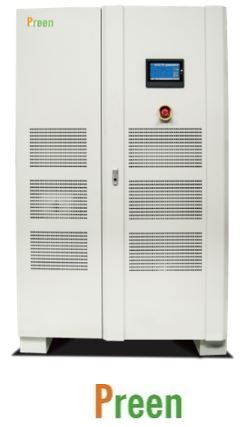

High Power Programmable AC Source

AFV series

AC power source that can be remote controlled and integrated with other systems for easier operation.

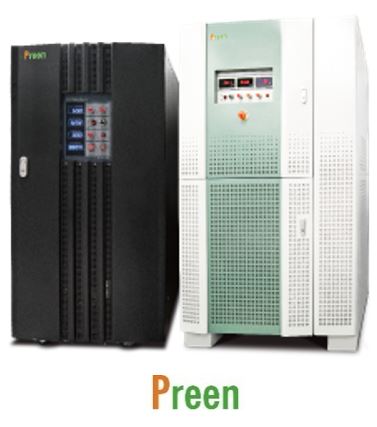

AC Power Supply/ Frequency Converter

AFC series

The output voltage range of 5-300V. Output frequency is switchable: 47-63Hz continuously adjustable

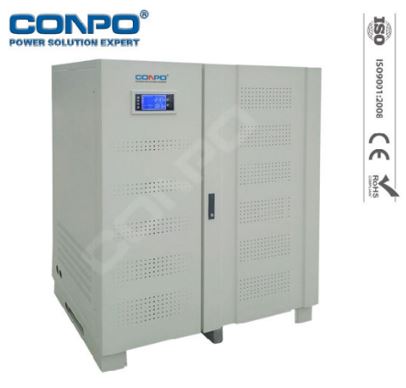

Microchip-controlled, Non-contact/Brushless AVR

SJW-WB serial Industrial Micro-chip(CPU), Non-contact(contactless) Compensated Voltage Stabilizer which is a new generation quick stabilizing voltage equipment.

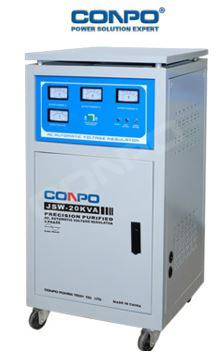

Ferro-resonant/Capacitor-type Precision Purified AVR

JSW series precision purifying AC regulated power source. It is an ideal regulated power source for all kinds of test and measurement device and electronic device.

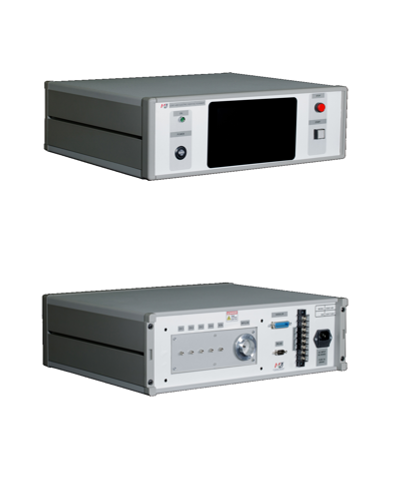

ES901-400 ECG DWX scanner 4 + 1 channels

THE UNIT IS DESIGNED SPECIALLY FOR ECG DWX IMPUSLSE WINDING TESTER COMPATIBLE.

High voltage scanner with 4 isolated Channels and additional return channel for ECG DWX series.
The colorful GUI touch screen provides easily access and control the unit, press once! test 4 coils.
This scanner is very useful for testing motor which has up to 4 coils.
ES901-400 has ES-handler port for PLC control and tower lamp for production line.

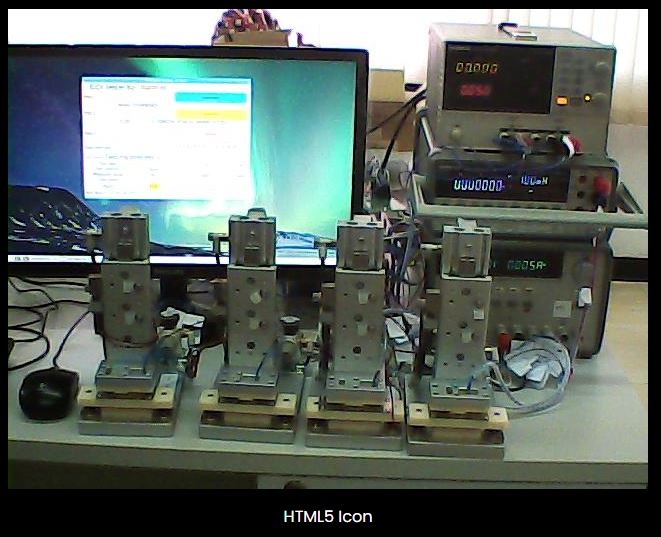

ODS Work instructions (WI) display in production line

EASILY UPDATE ONLINE WI

Tester for production line

Functional test and test result logging
The implementation of such a low-cost Linux-based single board processor, open source tools, and self-built control board.

This tester has lower cost but same performance comparing to normal PC.

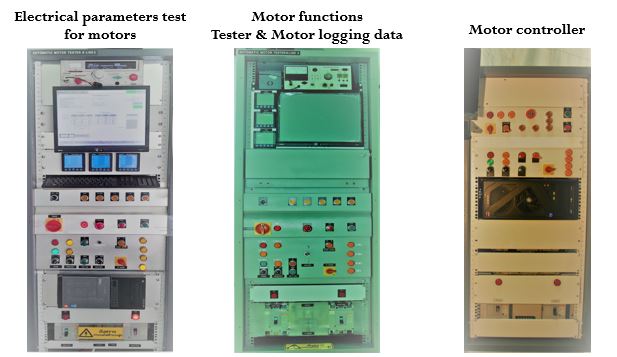

Coils and Motors test systems

Electrical parameters test for motors
Motor functions tester
Motor controller
Motor logging data

Software development

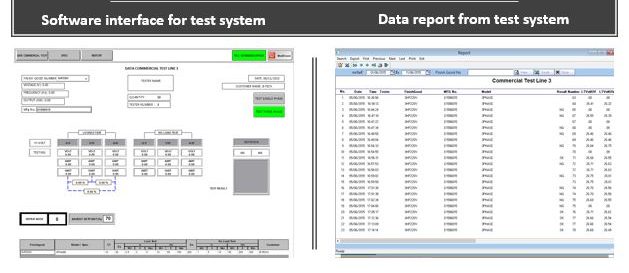

Software interface for a test system
Data report from a test system
